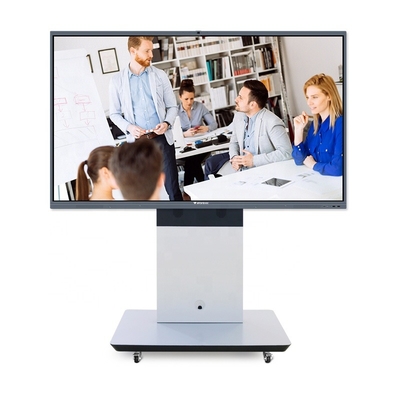

OEM ODM School Teaching 65 Inch Smart Touch Interactive Whiteboard Skd Smartboards For School

1 Set
MOQ
$1,095.00(1 - 9 Sets) $1,045.00(>=10 Sets)
Precio
OEM ODM School Teaching 65 Inch Smart Touch Interactive Whiteboard Skd Smartboards For School
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty(Year): 1-Year
Color: Grey
Package: Yes
Series: For Business
Aspect Ratio: 16:9
After-sales Service: Free spare parts, Repair, Others
Private Mold: Yes
Products Status: New
Type: Infrared
Interface Type: usb
Product name: H7Q 65" Clever Touch Interactive Whiteboard Skd Smartboards For School
Application: School teaching,Training,Office
Touch points: 20 Points Touch
Certificate: CE/CCC/FCC/ROHS/ISO9001
Function: Multifunctional(Office,Meeting,Training,Home)
Warranty: 12 Months
Material: Aluminum Alloy Frame+4 mm AG tempered Glass
Size: 65/75/86/100 Inch
Operating system: Android+Windows(Optional)
Accessory: Writing Pen,Power cord
Información básica
Certificación: CE/CCC/FCC/ROHS/ISO9001
Pago y Envío Términos
Packaging Details: High quality carton box Single package size: 1656*204*1050mm Foam +PP bag+ carton Single gross weight: 49.8 KGS
Supply Ability: 8000 Set/Sets per Month
Descripción de producto
Specification

OEM ODM 65 Inch Clever Touch Interactive Whiteboard Skd Smartboards For School

Design Features

1. It adopts anodized surface technology, all-aluminum alloy ultra-narrow frame, round corner design. 2. 4mm anti-glare tempered glass. 3. Support 20 points IR touch writing experience. 4. The OPS host module adopts a pluggable structure design, which is convenient for inspection, maintenance and upgrade. 5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1HDMI interface for users to expand. 6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and independently configured OPS computer channel switching buttons, easy to understand and operate. 7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup distance. 8. The machine intelligently senses the changes in the ambient light and lighting, then automatically adjusts the screen brightness to achieve the best display effect in different lighting environments, effectively protecting the users' eyesight, and achieving energy-saving effects. 9. Intelligently identify the signal source, and automatically jump into the port channel when the external signal is received. 10. Support the pull-up touch menu at the bottom machine, full-channel annotation, board in board, two-color writing, brightness adjustment, screen shots, and quick whiteboard operations and etc. 11.Smart cloud annotation, QR code scanning and sharing, mobile screen projection, wireless screen, remote meeting, VIP reception and other functions. 12. Laser making logo. 13. All in one in this solution:Smart conference whiteboard H7Q=PC+TV+Projector+Screen+Electronic Whiteboard+Advertising Player+Tablet+Speaker.
Screen parameters
Size
65"
75"
86"
100"
Type
ADS
Response time
8 ms
Display ratio
16:9
Display size (mm)
1428×804
1650×928
1895×1066
2159×1214
Resolution
3840(H)×2160(V)
Pixel pitch (mm)
0.372×0.372
0.429×0.429
0.4935×0. 4935
0.5622×0. 5622
Refresh rate
60Hz
60Hz
60Hz
120Hz
Color brightness
1.07B(10bit)
Color gamut
72%
Contrast ratio
4000:1
1200:1
1200:1
1200:1
Viewing angle
178°(H/V)
Backlight
DLED
Screen brightness
350cd/m2
350cd/m2
350cd/m2
350cd/m2
Life time
≥30000h
Touch writing system
Principle of Recognition
Infrared recognition
Touch points
20 touch
Smallest identifier
2mm
Input method
Fingers, touch pens and other opaque objects
Response time
<10 ms
Touch accuracy
±1mm (more than 90% touch area)
Writing height
3mm
Output coordinates
32767 (W) ×32767(D)
Writing display
Two colors writing
Built-in system
Motherboard solution
MSD8386
System version
Android 8.0
CPU
Dual core A73 + dual core A53 max1.5GHz
GPU
G51MP
RAM
4GB
ROM
32GB
Interface
HDMI in
3
USB 2.0
3
Touch
2
HDMI out
1
USB 3.0
3
VGA in
1
Audio in
1
SPDIF
1
RS232
1
Audio out
1
RJ45 in
1
Wifi
Version
802.11 a/b/g/n/ac
Operating frequency
2.4GHz/5GHz
Operating distance
0~12m
RAM
4GB
Remark
Realize this function through the wireless module SI02
Power
Size
65"
75"
86"
100"
Power input 100-240V~50/60Hz
2.5A
3.0A
5.0A
7.5A
Power consumption
250W
300W
500W
750W
Standby power consumption
≤0.5W
Environmental factory
Operating Temperature
0℃~40℃
Operating humidity
10%~90%RH
Storage temperature
-20℃~60℃
Storage humidity
10%~90%RH
Altitude
≤5000m
PC system (optional)
PC Model
I3 / I5
PC Type
Ultra-thin pluggable Intel Core series modular computer
CPU Configuration 1
i5,DDR4 8GB,M.2 solid state drive 128GB (SSD)
Configuration 2
i7,DDR4 16GB,M.2 solid state drive 256GB (SSD)
Graphics
Integrated Intel® HD Graphics
Sound card
Integrated HD stereo sound card
Built-in system
Windows 7/10 Enterprise Edition
HDMI output
1
USB 2.0
2
USB 3.0
2
Microphone input
1
Audio out
1
PC interface
120 pins
Size
55"
65"
75"
86"
100"
Display size (inch/mm)
1210×680
1428×804
1650×928
1895×1066
2159×1214
Overall size/Weight W×D×H(mm)/kg
1262×782×85
/26
1489×906×89
/37.5
1710×1029×89
/52.3
1957×1169×90
/69.8
2245×1323×90
/102
Packing size/Weight W×D×H(mm)/kg
1428×220×878
/36
1656×204×1050
/49.8
1886×210×1196
/66.2
2134×210×1334
/89.4
2483×376×1493
/136
QTY of containers(pcs) 20'GP/40'GP/40'HQ
102/236/254
79/183/197
59/137/148
53/123/133
20/47/50
Product Description
Packing & Delivery
Company Profile
Guangdong Deyuan Technology Co., Ltd., the headquarter is located in Guangzhou, China. Guangzhou JAV Electric Appliance Co., Ltd., and Guangzhou Raizea Intelligent Technology Co., Ltd is under Guandong Deyuan. Nowadays, Guangdong Deyuan is one of modern high-tech enterprises specialized in LED TV, smart commercial display products. The fore company of Guangdong Deyuan is Guangzhou JAV Electric Appliance Co., Ltd., which found in July 2006, JAV has always been deeply cultivating in the LCD TV industry, focus on product ID, R&D, sales and services, with 14 years of accumulation and precipitation, stand out from the electric appliance field. So far, we have got our own brand names JAV, RAIZEA, Wanbao. Products line covers LED TV, smart LED TV, smart board, digital kiosk for smart advertising display etc. Deyuan Group has 13 automatic injection molding machines, full size of LED TV mold, 6 dustless backlight module production lines, 6 automatic machine production lines, one quality inspection room. From industry design, mold development, injection molding, hardware stamping, backlight module, has formed a complete industrial chain system for our finished products. Deyuan factory has obtained ISO9001 quality management system certification, ISO14000 environmental system certification. Our products comply with 3C, CE, FCC, CB and ROHS standard, the company has been obtained good quality and credit enterprises in China, Guangzhou quality advanced enterprises. Deyuan technology promotes standardized, procedural, scientific management system. with an efficient enterprise marketing management team and rich experience in the electronics industry R&D team, Deyuan group pays attention to brand management, we use JAV brand to develop 500 agents on domestic market, retail outlets reached 5000 in China, service outlets all over the country, in recent years, Deyuan technology has been pushing forward overseas market, our products has been exported to Europe, South America, Southeast Asia, Middle East, Africa and more than 100 countries in the worldwide.
Making process
Certifications
FAQ
1. who are we?
We are manufacture in Huadu District, Guangzhou, near the Guangzhou Baiyun International Airport, providing OEM or ODM service.

2. how about your warranty?
The warranty period is 1 YEAR for complete machine, but our open cell are A grade LG screen, service life usually is 8-10 years.
Provided 1% spare parts: ISO:9001 international quality management system certificated, provide free spare parts to do the maintenance if there are defects in the warranty period.

3. What's your MOQ?
A: Generally, our FOB MOQ is 5-10 sets(It depends on the models), but small sample order 1 set is acceptable.

4. How long is delivery time?
A: Normally, the delivery time is 5-15 days according to the order quantity/ model/ size of the screens.

5. Do you have inventory?
A : In order to ensure the delivery time, we usually have 1000 UNITS of various size and model for normal model per month.

6. What payment method your company accept?
A:We accept most of the payment methods, it is mainly by TT/Western Union.
